Turn Over Machine
Product Introduction

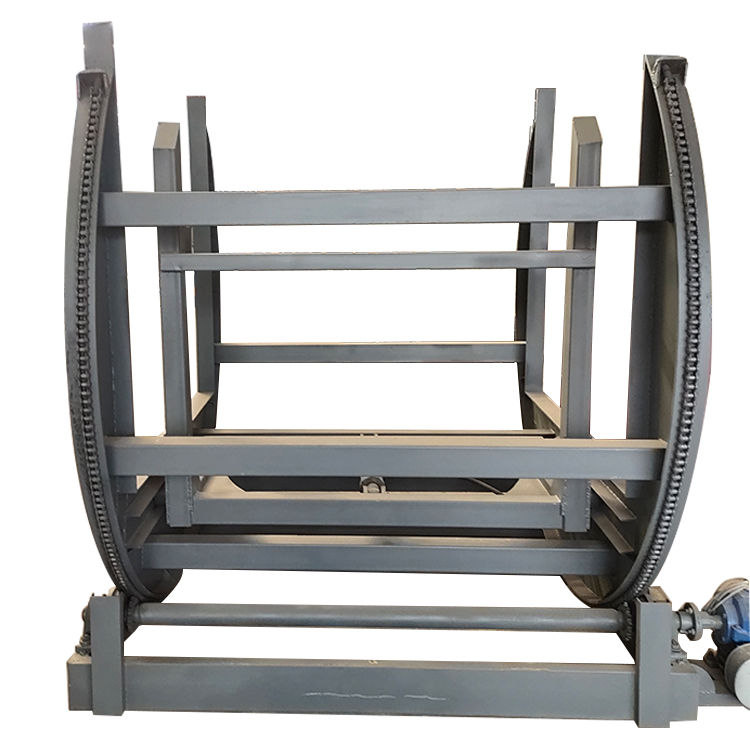

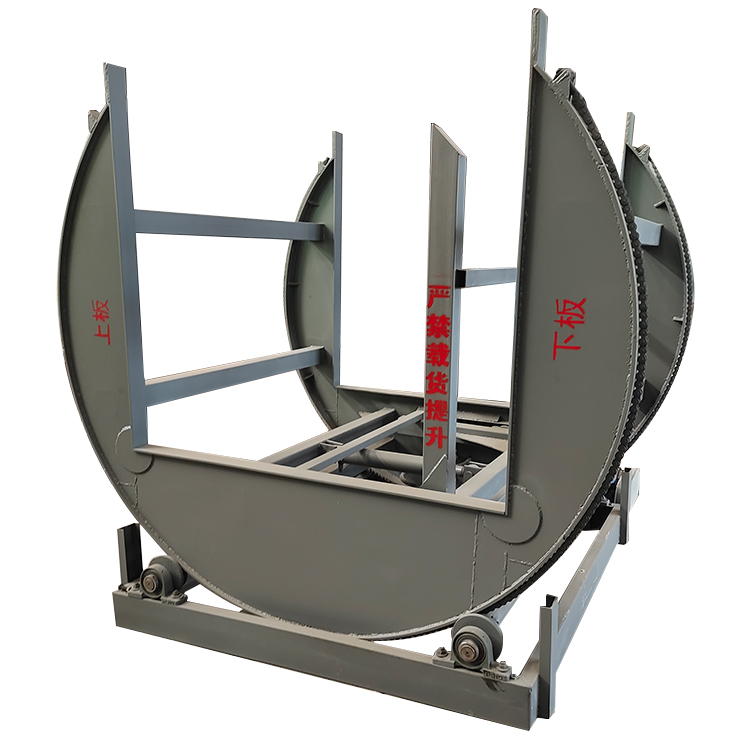

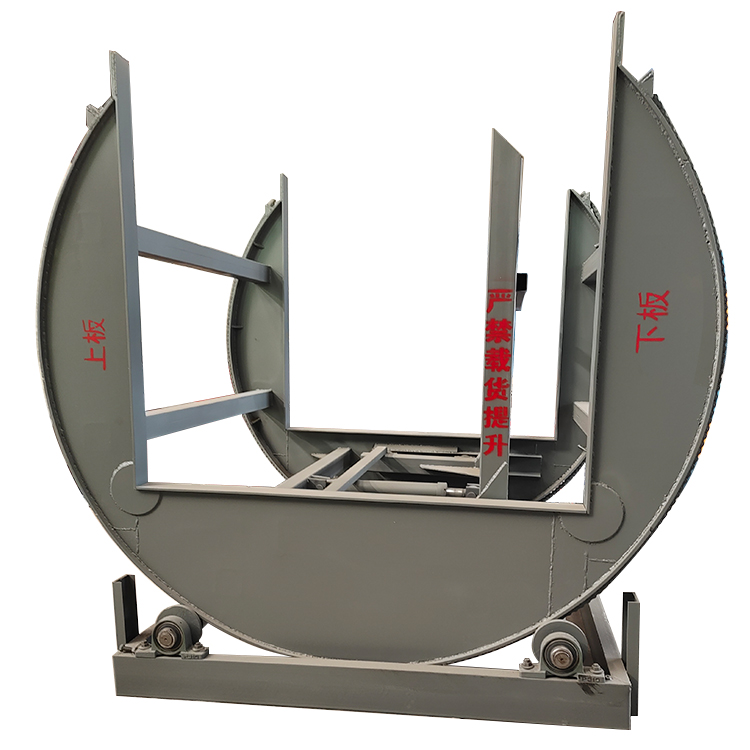

Automatic Plywood Panel Turnover Machine Turn Over Machine
The plate blank is fed in by means of rolling bearing,which causes no damage to the plate blank.
The control button and the indicating lamp are all located on the control panel, easy for operation as well nice and practical.
The turnover machine is major used along with single side sanding machine.After sanding one side,using turnover machine to turn the panels to other side ,then repeat the sanding process.
Specification
turn over machine | |
Model | SYFB4*8 |
Stroke of cylinder | 500mm |
Rotation angle | 0-180 |
Weight | 2T |
Overall dimension | 2400*2000*2220mm |
Power(hydraulic motor power and turnover power) | 1.5KW 3KW |
