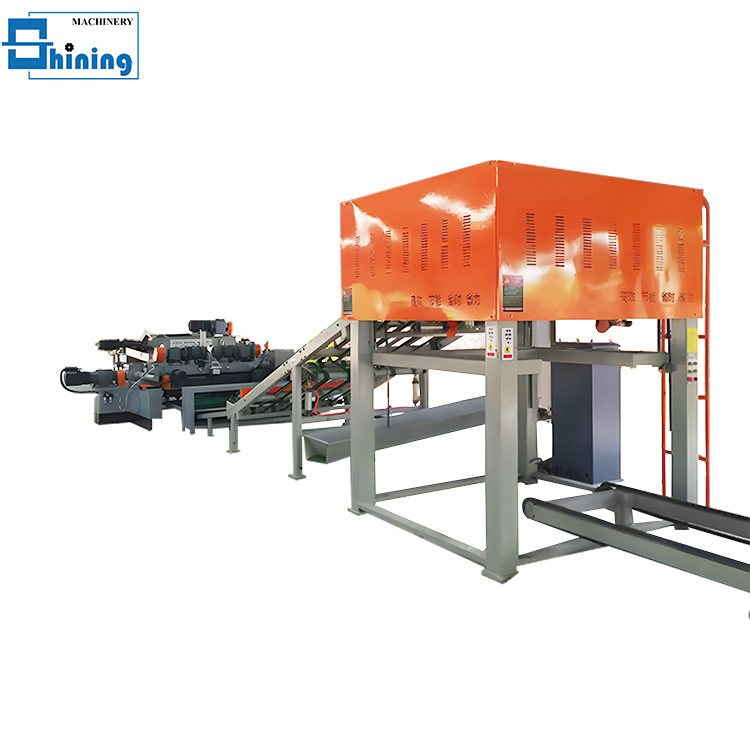

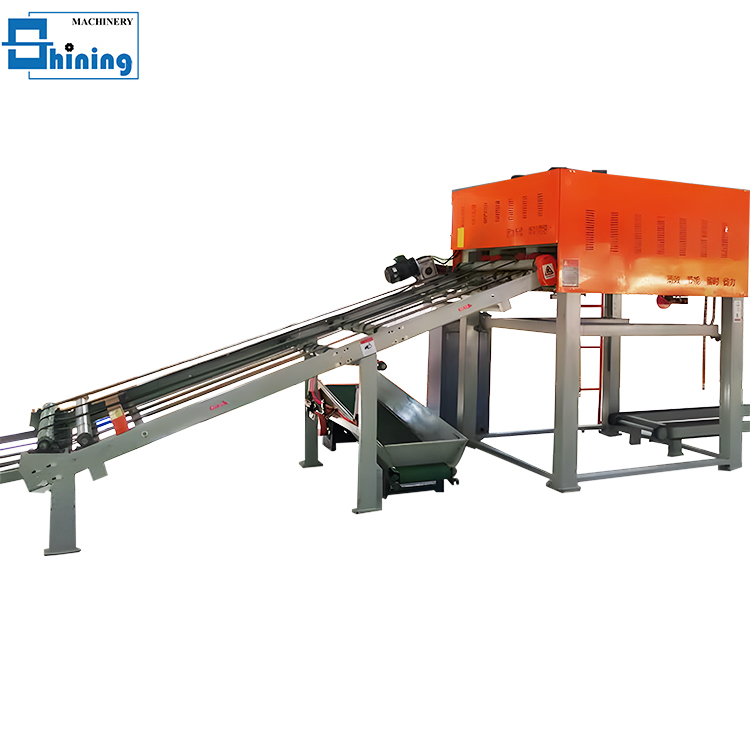

4ft Veneer stacker machine
Product Introduction
Veneer Stacker:
Automatic veneer stacker can suit different plywood core veneer production and greatly save you time and labor. Different choices according to your production situations.
1)Adjustable speed;
2)Full automatic control system;
3)Free design to suit your requirements;
4)High quality, accept premium raw material.
Specifications
Veneer Stacker Machine | |
Stacking size | 400mm—2600mm |
Veneer thickness range | 0.5mm-10mm |
Linear speed | 60-120m/min adjustable |
Vacuum fan motor power | 7.5kw*4sets |
Conveyor motor power | 4kw+4kw |
Lift motor power | 7.5kw |
Over size | 7000*2100*2500mm |
Weight | 2600Kgs |
